Geberit Sigma8 Duofix Frame, Wall Hung Concealed Cistern, Front Press, 4 Star

Geberit Sigma8 Duofix Frame, Wall Hung Concealed Cistern, Front Press, 4 Star 111.698.00.1 is designed for use with wall mounted toilet pans and fits within a standard wall cavity. The cistern is designed in Switzerland and made in Germany from a single piece of blow moulded HDPE making it permanently leak proof.

Be the first to review this product

$886.00

In stock

Product SKU

111.698.00.1

Shop Bathroom Collective with Confidence

Largest Independent Bathroom & Kitchenware Supplier
Huge Showroom with Quality Products
Professional Product Selection Advice & After Sales Support

Add to Wishlist Add to Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Specifications

Downloads

Questions

Delivery

Description

The system is compatible with a range of Geberit Sigma flush plates, including the Sigma80, Sigma10, and Sigma50 models. These flush plates are available in various materials such as glass, stainless steel, and plastic, offering a variety of designs to suit different bathroom styles. The flush plates feature either mechanical or touch-sensitive operation, providing both functionality and aesthetic flexibility.

Geberit concealed cisterns not only give you more space in your bathroom and provide greater design freedom and flexibility but the high-quality material ensures Geberit is virtually maintenance-free.

Geberit concealed cisterns are the classics of modern bathroom installations and have been installed a million times over around the world for more than 50 years. They are known for their proverbial reliability. Every cistern is leak-tested before it is delivered.

Geberit provides reliable, discreet behind-the-wall solutions that ensure perfect functionality, outstanding convenience and maximum durability. 50 years spare part availability, Geberit ensures the flushing functionality of its concealed cisterns for 50 years.

The flush volume of the Geberit concealed cisterns can be adjusted. It’s therefore exemplary in terms of water consumption and has achieved consistently high scores on the Water Efficiency Label.

Bathroom Collective has the largest Geberit Sigma8 Duofix Frame, Wall Hung Concealed Cistern, Front Press, 4 Star 111.698.00.1 display in Sydney, Australia and is the most trusted retailer of Geberit products. For all your general and product enquiries, get in contact with our team to discuss your next project.

Geberit Sigma8 Duofix Frame, Wall Hung Concealed Cistern, Front Press, 4 Star Specifications

Product Specifications

Country of Origin	Switzerland
Brand	Geberit
Style/Shape	Modern
Mounting	Wall Mounted

What's Included

Wall hung cistern
Standard connections
Installation instructions
Button not included

Lead Time

Generally in stock
1 - 2 weeks from order
(Contact us if item is required sooner)

Features

Suits wall hung toilets
WELS 4 Star 4.5L/3L
Leak-proof high density, impact-resistant one-piece blow moulded HDPE tank
Dual-flush plate provides access for servicing the internal parts of the cistern
Suitable for S or P trap back to toilet pans
Operating pressure 10-1000kpa
Fits standard walls
Freedom to choose over 30 flush button designs available in Australia
Supports up to 400kg, comply with AS 1172.1 (Geberit Sigma8 Duofix for Wall Hung Pans)
Moving parts are accessible through the flush plate
Tool-free installation and maintenance

Warranty

15 years on cistern tanks and frames
3 years on valve products
**Conditions apply**

Geberit Sigma8 Duofix Frame, Wall Hung Concealed Cistern, Front Press, 4 Star Downloads & Manuals

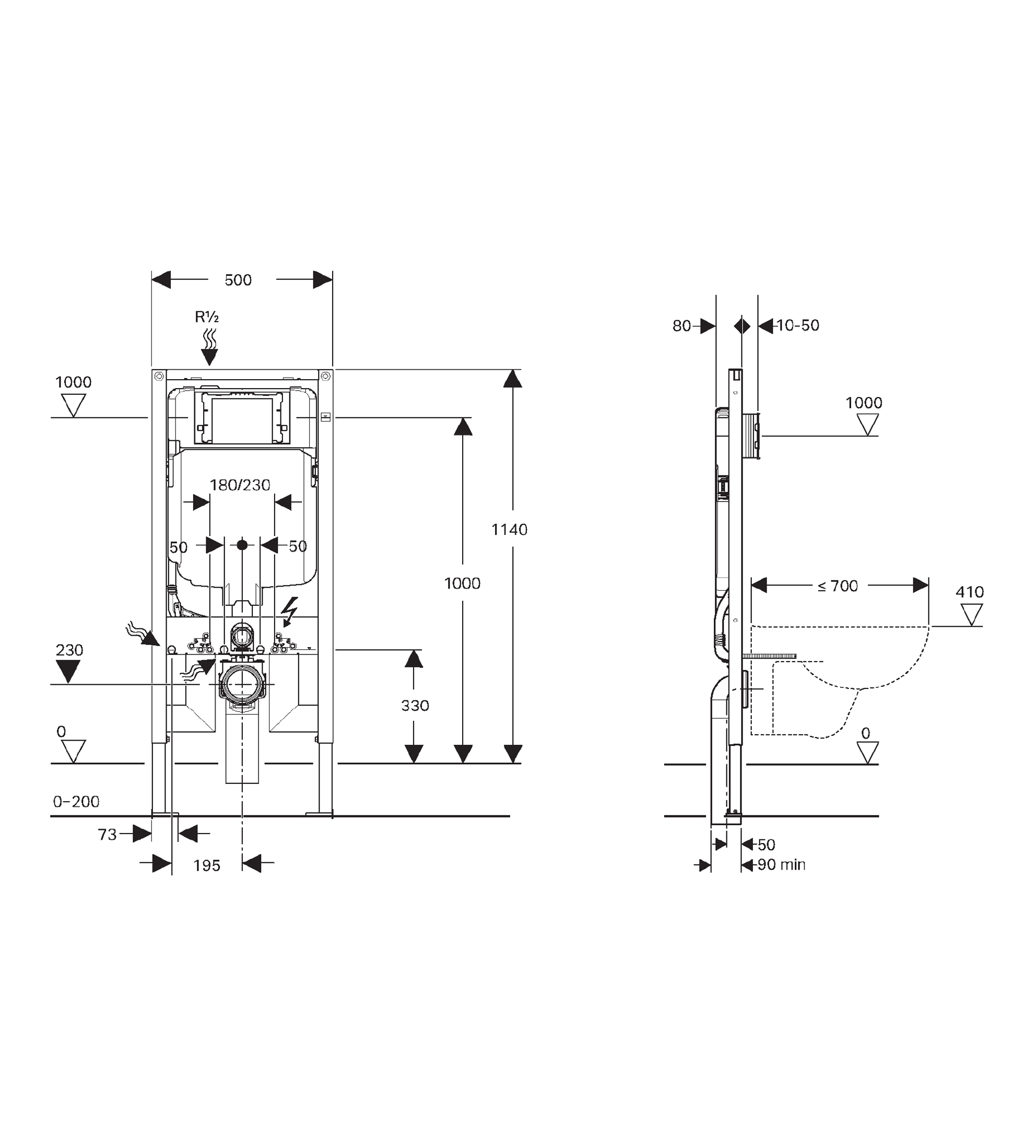

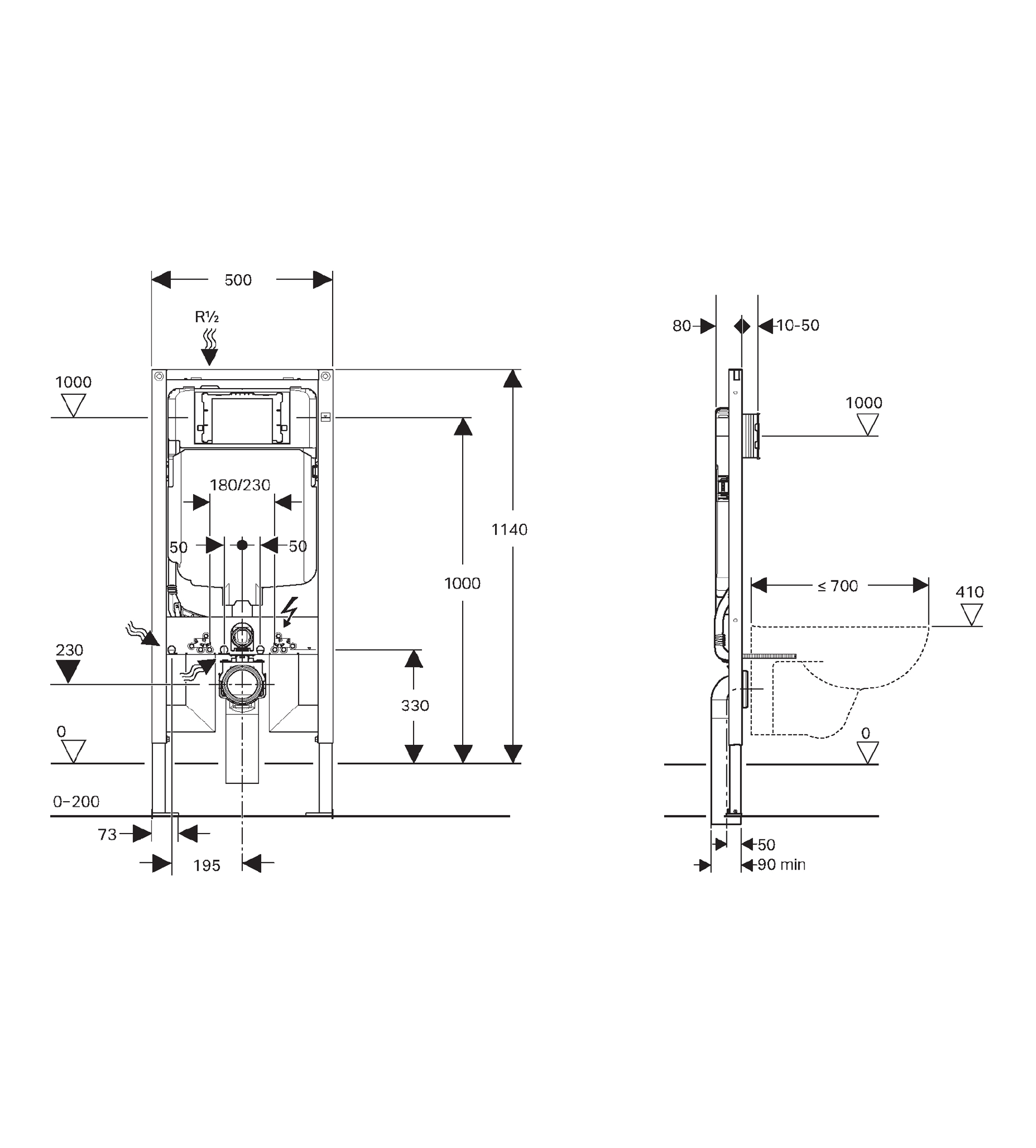

Geberit 111.698.00.1 Dimensional Drawing

(Size: 243.6 KB)

Geberit 111.698.00.1 Fitting Instructions

(Size: 2.4 MB)

Geberit 111.698.00.1 Specification Sheet

(Size: 1.5 MB)
